Help interpreting a schematic please?

Move Thread

LAN_403

Scavies430

Fri Feb 13 2009, 12:44AM

Registered Member #1924 Joined: Sun Jan 11 2009, 09:30PM
Location:
Posts: 12

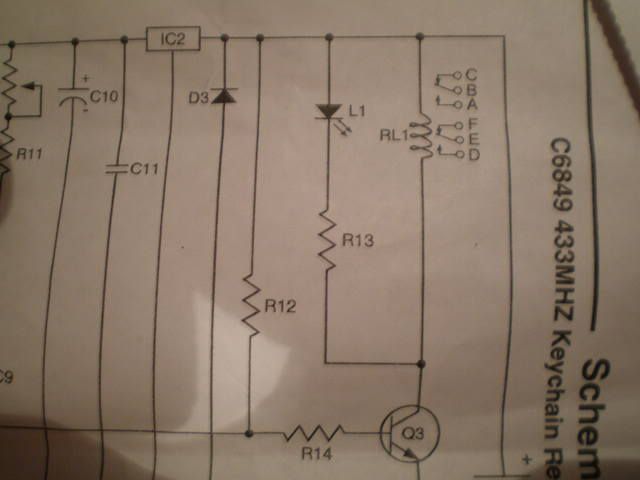

Alright, I made a fairly awesome remote toggle switch, but I have no idea how the connections are done on the DPDT relay provided.

I am simply looking for an SPST connection to toggle a sprinkler valve on/off. Which contacts should I solder the circuit onto.

Actually, if someone could just educate me about the symbols that would be wonderful. Thanks!

[Edit: Oversized picture, click the Edit button to learn how the "width" tag works.]

GeordieBoy

Fri Feb 13 2009, 01:19AM

Registered Member #1232 Joined: Wed Jan 16 2008, 10:53PM
Location: Doon tha Toon!
Posts: 881

When L1 is not lit, B is connected to C, and E is connected to F.

When L1 is lit and the relay is energised, B is connected to A, and E is connected to D.

I think there should also be a catch diode across RL1 to protect Q3 from the back EMF when it turns off.

-Richie,

Electroholic

Fri Feb 13 2009, 08:39AM

Registered Member #191 Joined: Fri Feb 17 2006, 02:01AM
Location: Esbjerg Denmark
Posts: 720

B and E are "COM", common.
C and F are "NC", normally closed.
A and D are "NO", normally opened.
